Modular Precision Spindle (MPS)
The world’s best spindle for Premium Line tool presetters:
KENOVA Set Line V6, V9 & V9-S.

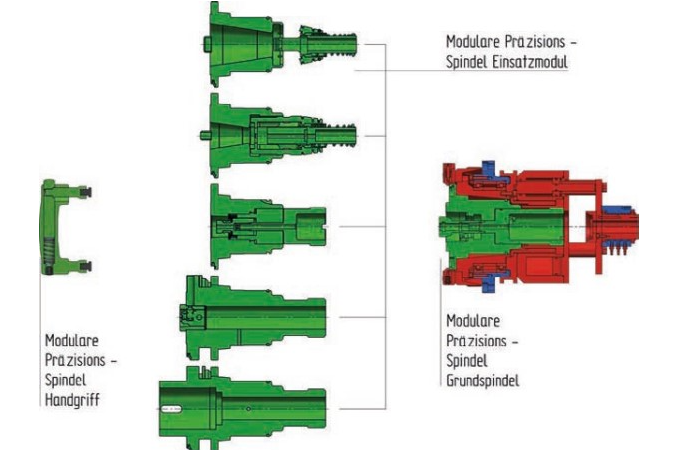

KELCH’s own modular precision spindle is the most stable and precise tool holder on the market. Decades of experience coupled with outstanding engineering knowledge and expertise lie behind this ultra-precise spindle. The modular system enables spindle inserts to be swapped within less than five seconds while maintaining excellent precision.
Maximum run-out of 1 μm on the flat surface and < 3 μm at a height of 300 mm and a tool weight of up to 150 kg speak for themselves.
CONTACT US FOR MORE INFORMATION ON THIS PRODUCT
CONTACT USOverview
MPS is the most advanced and accurate spindle for tool presetting.
The careful design enables fast change over of tool shank types without compromising accuracy. The inserts can easily be replaced if damaged and when new tool types are introduced to the shop floor you only need to buy the insert to suit.

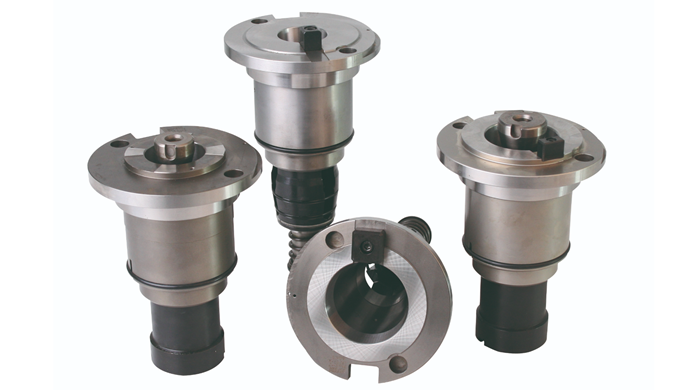

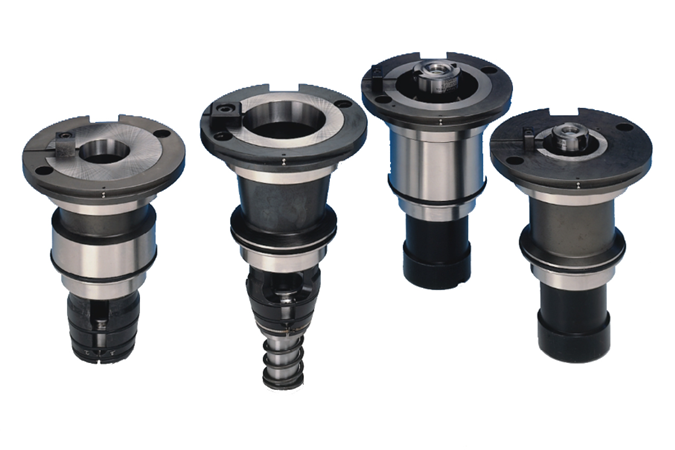

Inserts for the modular precision spindle
The contact face and the short taper ensure maximum repeatability when changing the insert modules, available for all standard HSK, PSC, VDI, KM and SK tool holders.
Clamping for all tools is similar to the machine tool, with steep taper holders using retention knobs centrally from behind and HSK holders using original clamping units expanded from the inside.
Clamping forces:
The contact face and the short taper ensure maximum repeatability when changing the insert modules, available for all standard HSK, PSC, VDI, KM and SK tool holders.
Clamping for all tools is similar to the machine tool, with steep taper holders using retention knobs centrally from behind and HSK holders using original clamping units expanded from the inside.
Clamping forces:
SK / BT up to 5 kN
HSK up to 15 kN
PSC up to 25 kN
HSK up to 15 kN
PSC up to 25 kN
-

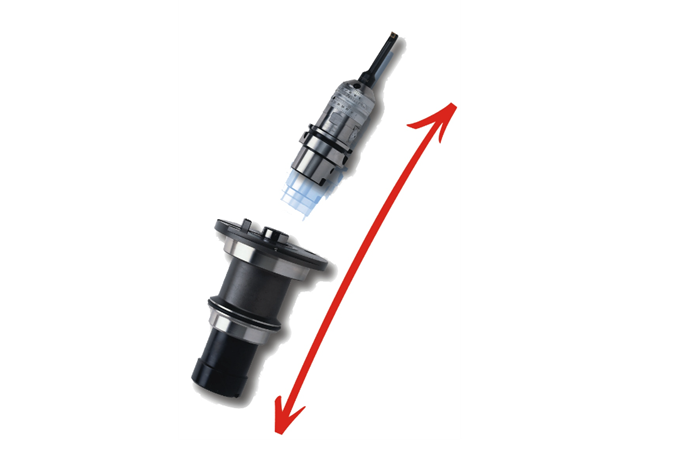

The MPS insert makes it easy to switch from one shank type to another
-
Engage the extraction handle, lift out the insert and place in the stand provided.
-
Disengage the handle and engage in the next MPS insert required and insert back in the presetter spindle.
-
This process takes just seconds and the high accuracy is maintained
-
No adaptors needed that can add another runout tolerance
-
Face and taper location on the bearing housing
-
The pull-back forces on the presetter engage the tool in the same way it would be clamped in the machine spindle.
-
Ensures the tool is measured in the same position it will be used in the machine spindle.
-
Low cost and speedy exchange in the case of spindle damage
-
Integrated tool holder clamping mechanism
-
Only available for MPS Spindles on V6, V9 and V9-S
